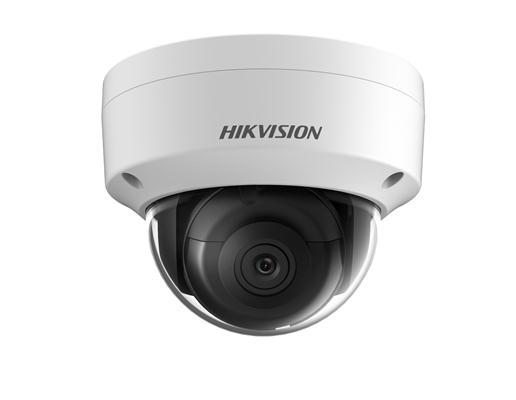

CAMERA IP HIKVISION

DS-2CD2135FWD-I

Giá: 4.128.000 5.160.000 Xem: 1995 Còn hàng

• Up to 3 megapixel high resolution
• Max. 2048 × 1536@30fps
• 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
• H.265, H.265+, H.264+, H.264
•120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• DC12V & PoE (802.3af)
• IR range: up to 30 m
• Support on-board storage, up to 128 GB
• IP67, IK10

CAMERA
Image Sensor: | 1/2.8″ Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 2.8 mm, horizontal field of view: 98°
4 mm, horizontal field of view: 78.7°
6mm, horizontal field of view: 48°
8 mm, horizontal field of view: 37°
12 mm, horizontal field of view: 23°
Lens Mount: | M12
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
COMPRESSION STANDARD
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: | 32Kbps~16Mbps
Triple Streams: | Yes
Max. Image Resolution: | 1920 x 1080
Frame Rate: | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280×720)
60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280×720)
Sub Stream: | 50Hz: 25fps (640 × 360, 352 × 288)
60Hz: 30fps (640 × 360, 352 × 240)
Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: | BLC/3D DNR
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping: | Support
ROI: | Support 1 fixed region for each stream
Day/Night Switch: | Auto/Scheduled
NETWORK
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
INTERFACE
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SMART FEATURE-SET
Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: | Cross a pre-defined virtual line
Intrusion Detection: | Enter and loiter in a pre-defined virtual region
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.
Recognition: | Face Detection
GENERAL
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: | 12 VDC ± 25%, 5.5 W
PoE(802.3af, class 3), 7 W
Impact Protection: | IK10
Weather Proof: | IP67
IR Range: | Up to 30m
Dimensions: | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Weight: | Camera: 500 g (1.1 lb.)
